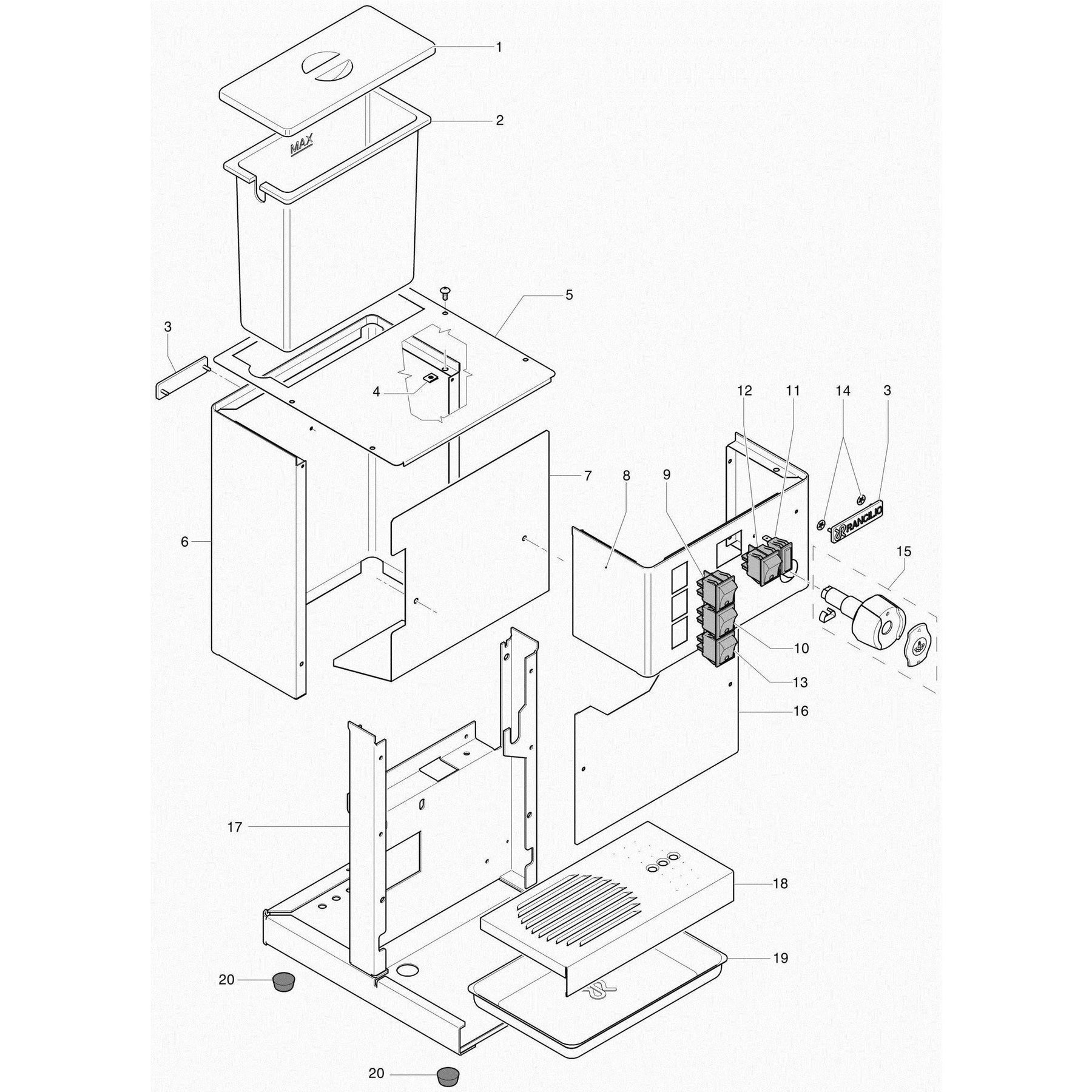

Silvia parts Diagram
Quantity:
- 2 Years Warranty
- Same Day Dispatch
- Overnight Shipping In Ireland
- Free EU Shipping on Machines

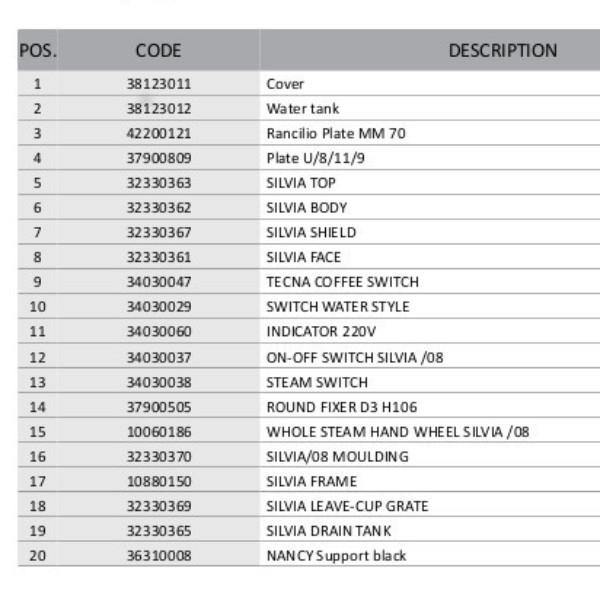

| Pos. | Product code | Description |
|
1 |
38123011 | Cover |
| 2 | 38123012 | Water tank |
| 3 | 42200121 | Rancilio Plate MM 70 |
| 4 | 37900809 | Plate U/8/11/9 |
| 5 | 32330363 | SILVIA TOP |
| 6 | 32330362 |
Silvia body |
| 7 | 32330367 | Silvia Shield |
| 8 | 32330361 | Front Panel Silvia |
|
9 |
34030047 | Tecna Coffee Switch |
| 10 | 34030029 | Switch Water Style |
| 11 | 34030060 | Indicator 220V |
| 12 | 34030037 | On-Off Switch Silvia /08 |
| 13 | 34030038 | Steam Switch |
| 14 | 37900505 | Round Fixer D3 H106 |
| 15 | 10060190 | Steam Handle Assy. |
| 16 | 32330370 | Lower Front Panel Silvia/08 |
| 17 | 10880188 | Frame Painted Silvia |
| 18 | 32330369 | Silvia Leave-Cup Grate |
| 19 | 32330365 | Drain Tray Silvia |
| 20 | 36310008 | Nancy Support Black |
